As a supplier of Rigid PVC Sheets for Printing, I often encounter clients who face challenges with the adhesion of ink on these sheets. Achieving optimal ink adhesion is crucial for high - quality printing results, whether it's for advertising materials, folding boxes, or other applications. In this blog post, I'll share some effective strategies to improve ink adhesion on rigid PVC sheets.
Understanding the Basics of Rigid PVC Sheets

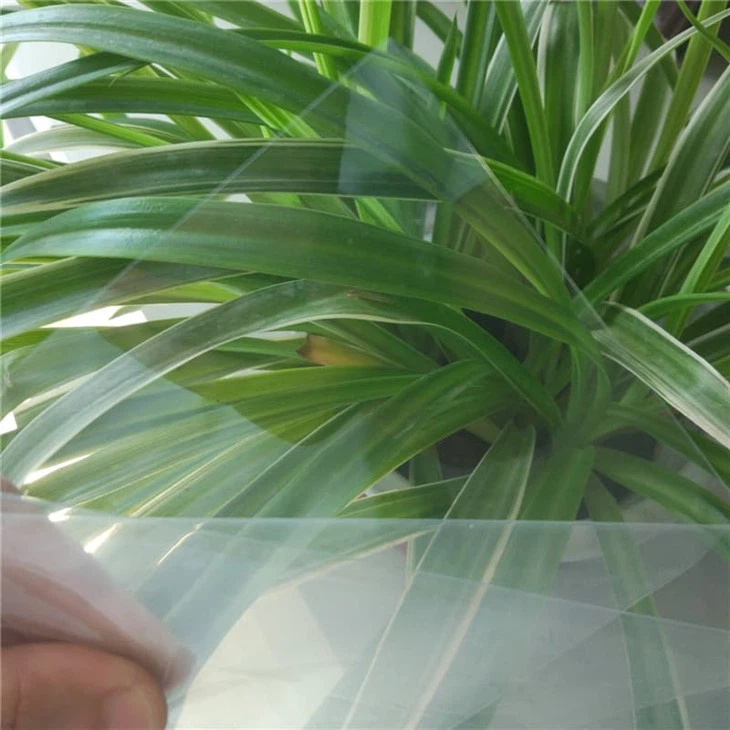

Rigid PVC sheets are popular in the printing industry due to their durability, flexibility in design, and cost - effectiveness. They come in various forms, such as Clear Glossy Transparent PVC Sheet For Folding Box, PVC Sheet For Advertising And UV Printing, and High Transparent PVC Sheet For Folding Boxes. However, PVC is a non - porous material, which means that ink doesn't naturally adhere to it as well as it does to porous substrates.
Surface Preparation
The first step in improving ink adhesion is proper surface preparation. A clean and well - treated surface provides a better foundation for ink to bond with.
- Cleaning: Dust, oil, and other contaminants on the PVC sheet surface can prevent ink from adhering properly. Use a mild detergent and a soft cloth to clean the sheets. After cleaning, rinse thoroughly with water and allow the sheets to dry completely. Avoid using abrasive cleaners that can scratch the surface, as these scratches can also affect ink adhesion.
- Abrasion: Gently abrading the surface of the PVC sheet can increase the surface area available for ink to adhere to. You can use fine - grit sandpaper to lightly sand the sheet. However, be careful not to sand too aggressively, as this can damage the sheet and cause an uneven print finish. After sanding, wipe the sheet with a clean cloth to remove any dust particles.
- Chemical Treatment: There are several chemical treatments available that can improve the surface energy of PVC sheets. For example, a primer can be applied to the sheet. Primers contain chemicals that react with the PVC surface, creating a more receptive layer for ink. Different primers are formulated for different types of inks, so it's important to choose a primer that is compatible with your printing ink.
Ink Selection
The type of ink you choose plays a significant role in adhesion.
- UV - Curable Inks: UV - curable inks are a popular choice for printing on rigid PVC sheets. These inks are cured by ultraviolet light, which causes a chemical reaction that hardens the ink and bonds it to the surface. UV - curable inks offer excellent adhesion, durability, and fast drying times. They are also resistant to fading, scratching, and chemicals, making them suitable for outdoor and long - lasting applications.
- Solvent - Based Inks: Solvent - based inks can also provide good adhesion on PVC. The solvents in these inks can slightly dissolve the surface of the PVC, allowing the ink to penetrate and bond. However, solvent - based inks require proper ventilation during the printing process due to the release of volatile organic compounds (VOCs).
- Water - Based Inks: Although water - based inks are more environmentally friendly, they generally have lower adhesion on PVC compared to UV - curable or solvent - based inks. However, with proper surface treatment and the use of additives, water - based inks can achieve acceptable adhesion levels.
Printing Conditions
The conditions under which you print can also impact ink adhesion.
- Temperature and Humidity: Maintaining the right temperature and humidity in the printing environment is crucial. High humidity can cause the ink to dry too slowly, while low humidity can lead to static electricity, which can attract dust and affect the print quality. The ideal temperature for printing on PVC sheets is usually between 20 - 25°C, and the relative humidity should be around 40 - 60%.
- Printing Pressure: Adequate printing pressure ensures that the ink is evenly transferred onto the PVC sheet and has maximum contact with the surface. If the pressure is too low, the ink may not adhere properly, and if it's too high, it can damage the sheet. Adjust the printing pressure according to the thickness and hardness of the PVC sheet and the type of printing equipment you are using.
Post - Printing Process
After printing, additional steps can be taken to enhance ink adhesion.
- Curing and Drying: Proper curing and drying are essential for the final adhesion of the ink. For UV - curable inks, ensure that the UV lamps are working correctly and that the sheets are exposed to sufficient UV light. For solvent - based and water - based inks, allow the sheets to dry completely in a well - ventilated area. The drying time can vary depending on the type of ink, the thickness of the ink layer, and the environmental conditions.
- Heat Treatment: In some cases, heat treatment can be used to improve ink adhesion. After printing, the PVC sheets can be heated to a specific temperature for a certain period of time. This helps to further bond the ink to the surface and can enhance the durability of the print. However, it's important to be careful not to overheat the sheets, as this can cause deformation.
Quality Control
Regular quality control checks are necessary to ensure consistent ink adhesion.
- Adhesion Testing: Conduct adhesion tests regularly to monitor the quality of the printed products. One common method is the cross - hatch adhesion test. Using a sharp blade, make a series of parallel cuts on the printed surface, followed by a second set of cuts perpendicular to the first. Then, apply a piece of adhesive tape over the cross - hatched area and pull it off quickly. Evaluate the amount of ink that is removed with the tape according to a standard scale.
- Monitoring Printing Parameters: Keep a record of all the printing parameters, such as ink type, surface treatment, temperature, humidity, and printing pressure. If any adhesion issues occur, you can refer to these records to identify the possible causes and make appropriate adjustments.
In conclusion, improving the adhesion of ink on rigid PVC sheets for printing requires a comprehensive approach that includes surface preparation, proper ink selection, control of printing conditions, and appropriate post - printing processes. By following these strategies and conducting regular quality control, you can achieve high - quality printing results with excellent ink adhesion.
If you are interested in purchasing high - quality Rigid PVC Sheets for your printing projects and want to discuss how to optimize ink adhesion for your specific needs, feel free to reach out and start a procurement negotiation. Our team of experts is ready to assist you in finding the best solutions for your printing requirements.
References
- Jones, R. A. (2015). Plastics in Packaging. Royal Society of Chemistry.
- Smith, J. B. (2018). Handbook of Printing Technologies. CRC Press.
- Brown, L. M. (2020). Surface Treatment of Polymers for Improved Adhesion. John Wiley & Sons.
